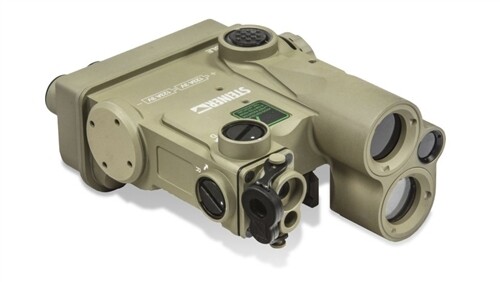

STEINER DBAL-A4 DUAL BEAM GREEN VISIBLE & IR LASER W/ IR ILLUMINATOR

DESCRIPTION:

The Steiner Optics' DBAL-A4 Dual Beam Aiming Laser is a durable yet compact multi-function aiming device that incorporates a green aiming laser, infrared aiming laser, infrared LED illuminator, and white light LED illuminator. While the infrared laser is ideal for use with night vision devices, during covert night target acquisitions, the green laser produces a brilliant green spot that is highly visible during either the day or night. The alignment of lasers can be easily achieved by using the windage and elevation adjustments. For convenience, operators have a choice of using the integrated pushbuttons and controls or the included pressure pad for activating various light sources.

To withstand the rigors of the battlefield, this device is outfitted with a high-grade aluminum and polymer housing that provides a waterproof and impact-resistant performance. To protect optical apertures while not in use, the device offers tethered lens caps. For compatibility with Picatinny rails, the DBAL offers a bolt-on mount.

FEATURES:

• Spot and Wide Field of View (Flood)
• IR Illumination Modes
• Fully adjustable windage and elevation
• Integrated push-button switch and remote cable pressure-pad switch activation - tap and release for momentary activation; tap twice for 5-minute continuous ON
• Attaches to any Picatinny rail using secure quick disconnect mount
• Includes remote cable ports for paddle switch activation and visible
• Laser/White Light override

SPECIFICATIONS:

• Wavelength - Visible Green Laser: 532 nm
• Wavelength - IR Laser: 835 nm
• Wavelength - IR Illuminator: 835 nm
• Beam Divergence - Visible Green Laser: <0.8 mRad
• Beam Divergence - IR Laser: <0.8 mRad
• Beam Divergence - IR Illuminator: 95-195mRAD (non LED)
• Range/Visibility (Night/Day)* - Visible Green Laser: 750 m / 15 m
• Range/Visibility (Night/Day)* - IR Laser: >250m
• Range/Visibility (Night/Day)* - IR Illuminator: ≤1000 m
• White Light: 500 Lumens
• Temperature: -10° C to +65° C
• Battery: CR 123A
• Battery Life (mode dependent): > 3 Hours
• Material: Aircraft Aluminum
• Color: Black (part# 9014) or Desert Sand (part# 9016)
• Weight (with battery): 8 oz.
• Dimensions: 3.5 (L) x 2.75 (W) x 1.59 (H)
• Waterproof: Submersible to >5 m
• Mount: QD HT Mount
• Windage and Elevation Adjustment: Yes
• Activation Switch: Integrated Push Button
• Remote Cable Pressure Pad: Yes
• Warranty: 3 Years
• Special Features: Dual Remote Cable Ports
