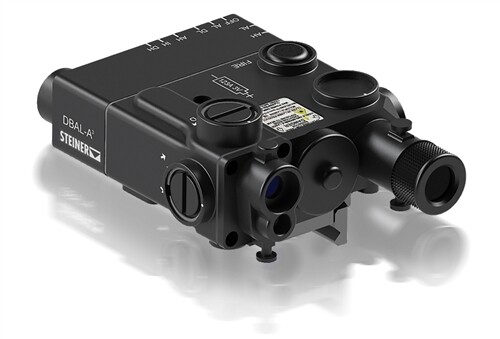

STEINER DBAL-A3 DUAL BEAM

GREEN VISIBLE & IR LASER W/ IR ILLUMINATOR

DESCRIPTION:

Now available for the commercial market, the first eye-safe IR laser pointer, IR illuminator and green laser pointer in a single compact unit. Features an adjustable IR illuminator for better illumination at longer ranges, dual activation switches and high/low power modes.

FEATURES:

• Fully Adjustable Windage / Elevation
• Quick Release HT Mount
• Co-Aligned Visible & IR Aiming Lasers
• IR Illuminator
• Powered By: One CR 123A Battery
• Remote Cable Port Activation / Mode Selector Switch
• Integrated Activation Switch
• Available in Black (part# 9008) or Desert Sand (part# 9009)

SPECIFICATIONS:

• Wavelength - Visible Green Laser: 532 nm
• Wavelength - IR Laser: 835 nm
• Wavelength - IR Illuminator: 835 nm
• Beam Divergence - Visible Green Laser: <0.8 mRad
• Beam Divergence - IR Laser: <0.8 mRad
• Beam Divergence - IR Illuminator: 95-195mRAD (non LED)
• Range/Visibility (Night/Day)* - Visible Green Laser: 750 m / 15 m
• Range/Visibility (Night/Day)* - IR Laser: >250m
• Range/Visibility (Night/Day)* - IR Illuminator: ≤1000 m
• Temperature: -10° C to +65° C
• Battery: CR 123A
• Battery Life (mode dependent): > 3 Hours
• Material: Aircraft Aluminum
• Color: Black (part# 9008) or Desert Sand (part# 9009)
• Weight (with battery): 8 oz.
• Dimensions: 3.5 (L) x 2.75 (W) x 1.59 (H)
• Waterproof: Submersible to >5 m
• Mount: QD HT Mount
• Windage and Elevation Adjustment: Yes
• Activation Switch: Integrated Push Button
• Remote Cable Pressure Pad: Yes
• Warranty: 3 Years
• Special Features: Dual Remote Cable Ports
